Samsung TV and Soundbar

TV

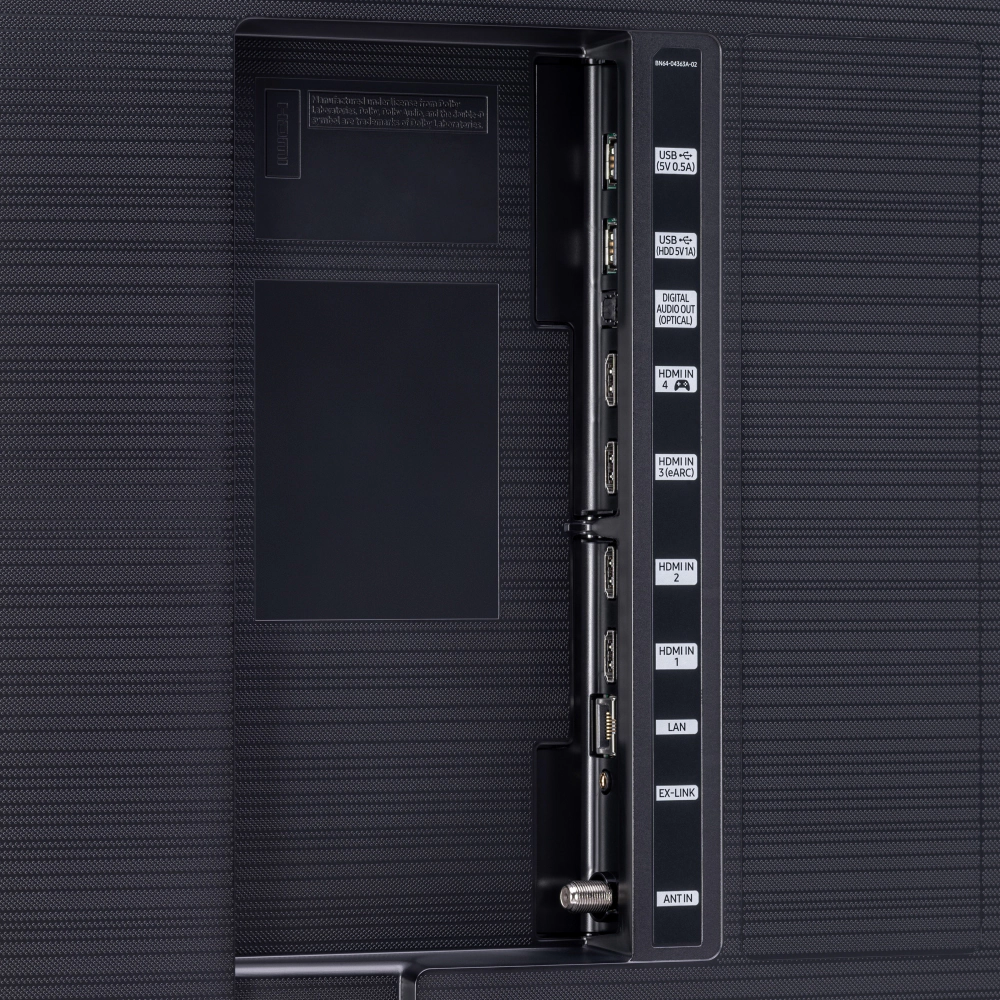

Samsung 75” Q80T QLED 4K UHD HDR Smart TV (2020) QN75Q80TAFXZA

• specs
• manual

Soundbar

Samsung 9.1 soundbar HW-Q950T/ZA with 4K/HDR pass-through

• manual

Connectivity

Connect your video source, soundbar and TV using HDMI:

+---------------+
| HTPC/AppleTV  |
+----o----------+
     |
    HDMI
     |
    \./
+----o----------+
| HDMIin        |
|               |
| SoundBar      |
|               |
| HDMIout ARC   |
+----o----------+
     |
    HDMI
     |
    \./
+----o----------+
| HDMIin ARC    |
|               |
| TV            |
|               |
+---------------+

flowchart TD
    A[HTPC/AppleTV] -->|HDMI| B[HDMI in
    SoundBar
    HDMI out ARC]
    B -->|HDMI| C[HDMI in ARC
    TV]

• Enable HDMI-CEC settings on your AppleTV.
• Enable Anynet+ on the soundbar. This will make the soundbar turn on automatically when you turn on the connected external device.
• Enable Anynet+ (HDMI-CEC) on the TV. This will make the TV turn on when the the soundbar is turned on
